221 SMD RESISTOR

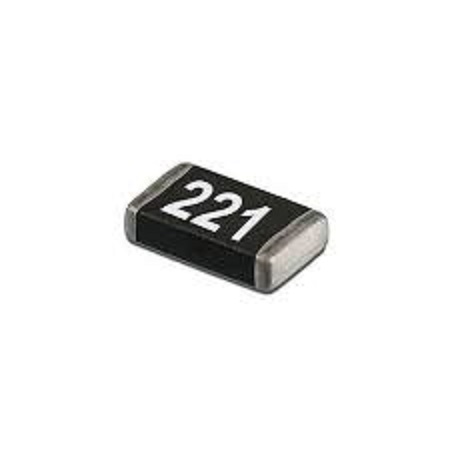

221 SMD Resistor (220Ω, 1%) – Surface Mount Device (0805 Package)
The 221 SMD resistor provides a resistance of 220 ohms (220Ω) with a ±1% tolerance, making it an excellent choice for current limiting, signal conditioning, and pull-up/pull-down applications in compact electronic circuits. Marked “221” according to the standard three-digit SMD code, this resistor is housed in a space-efficient 0805 surface-mount package, ideal for automated PCB assembly and high-density layouts.
221 SMD Resistor (220Ω, 1%) – Surface Mount Device (0805 Package)
The 221 SMD resistor provides a resistance of 220 ohms (220Ω) with a ±1% tolerance, making it an excellent choice for current limiting, signal conditioning, and pull-up/pull-down applications in compact electronic circuits. Marked “221” according to the standard three-digit SMD code, this resistor is housed in a space-efficient 0805 surface-mount package, ideal for automated PCB assembly and high-density layouts.
-
Resistance: 220Ω (Marked “221”)
-
Tolerance: ±1%
-
Power Rating: 1/8W typical (check datasheet for exact specs)
-
Package Size: 0805 (2.0mm x 1.25mm)
-
Technology: Thick film surface-mount resistor
-
Temperature Coefficient: ±100 ppm/°C typical
-
Operating Temperature Range: -55°C to +155°C
-
Compliance: RoHS compliant and lead-free
Ideal for use in LED circuits, microcontroller interfaces, audio systems, and consumer electronics.
